Polaris · Utility Side-by-Side · 2026

2026 Polaris Ranger Crew XP 1000 NorthStar Edition Ultimate

82 hp. Six seats. 2,500 lbs towing.

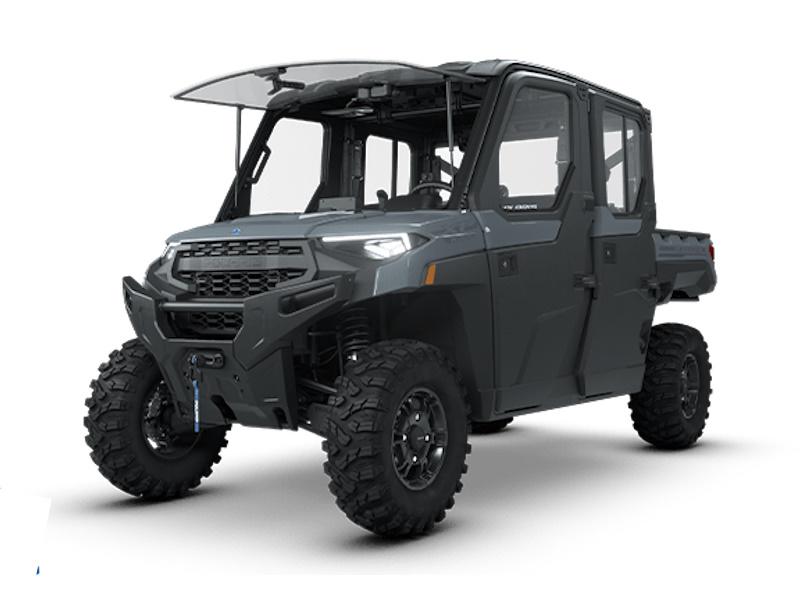

2026 Polaris Ranger Crew XP 1000 NorthStar Edition Ultimate utility side-by-side from Polaris, right-side studio view

What you get

The 999cc twin pulls 2,500 lbs and hauls 1,125 lbs payload, built on a 113-inch wheelbase that keeps work stable across rough ground. Six-person seating in dual-row bench configuration handles crew and cargo together. Selectable AWD with VersaTrac Turf Mode lets you switch between on-demand all-wheel drive and 2WD depending on terrain. The dump box holds 1,000 lbs, integrates Lock & Ride accessories, and the 14-inch ground clearance clears most obstacles. Moon Motorsports stocks the Ranger Crew XP 1000 NorthStar Edition Ultimate in Monticello.

Full specifications

Engine

Engine Type4-stroke twin cylinder DOHC
Cylinders-Displacement (cc)999 cc
CoolingLiquid
Engine Power82 hp

Drivetrain

Drive SystemSelectable on-demand all-wheel drive, AWD/2WD/VersaTrac Turf Mode
TransmissionGen 2 Automatic PVT H/L/N/R/P; shaft

Suspension

Front SuspensionDual A-arm
Rear SuspensionDual A-arm
Front Travel (in./cm.)10" (25.4 cm)

Brakes

Front braking system4-wheel hydraulic disc with dual-bore front and rear calipers
Rear braking system4-wheel hydraulic disc with dual-bore front and rear calipers

Wheels & Tires

Wheels14" aluminum
Front Tire29 x 9-14; Pro Armor X Terrain

Dimensions

Bed Box Dimensions (LxWxH)36.75 x 54.25 x 12.5"" (93 x 138 x 32 cm)
Ground Clearance14" (36 cm)
Overall Vehicle Size (LxWxH)152 x 65 x 79.5"" (386 x 165 x 201 cm)
Wheelbase113" (287 cm)
Hitch/TypeStandard 2" (5 cm) receiver

Capacities

Box Capacity1,000 lbs. (454 kg) CA Models: 600 lbs. (272 kg)
Fuel Capacity11.5 gal (43.5 L)
Payload Capacity1125 lbs. (510 kg)
Towing Capacity2,500 lbs. (1134 kg)

Weights

Estimated Dry Weight (lbs./kgs.)2,485 lbs. (1127 kg)

Features

Cargo SystemGas-assist dump box with Lock & Ride accessory integration
Seat Type6-person, dual-row, bolstered bench seats with 3-point harness and adjustable driver seat
FeaturesDoors: Powered window front doors, crank window rear doors
