Polaris · Utility Side-by-Side · 2024

2024 Polaris Ranger XP Kinetic Premium

110 HP electric. 1,500 lb payload. Ready to work.

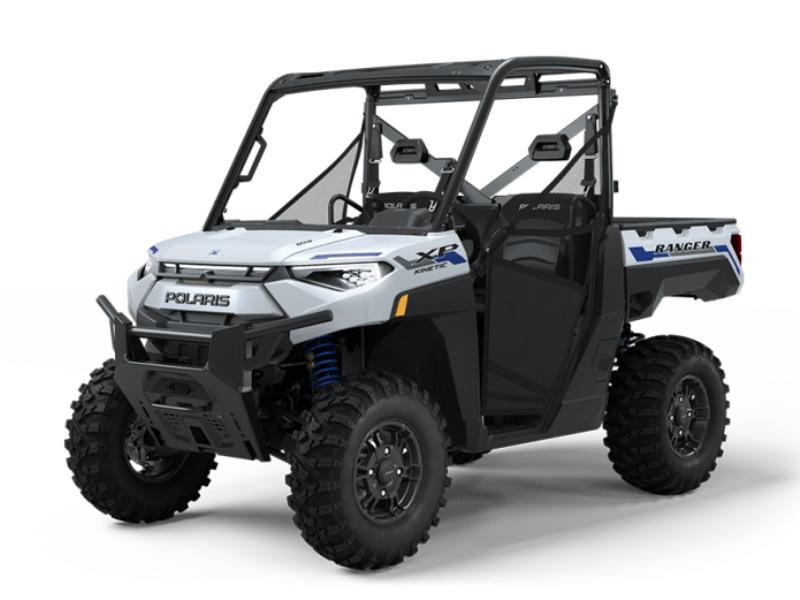

2024 Polaris Ranger XP Kinetic Premium utility side-by-side from Polaris, right-side studio view

What you get

The 110 HP AC motor delivers 140 lb-ft of torque instantly. Payload hits 1,500 lbs with a 1,250 lb bed capacity for serious hauling. The lithium 14.9 kWh battery powers regenerative braking and Polaris' Ride Command connectivity. Dual A-Arm suspension front and rear handles rough terrain, while 4-wheel hydraulic disc brakes with dual-bore calipers keep it planted. Three-seat cabin with premium cut-and-sew seating and a standard 2-inch receiver. Moon Motorsports stocks the Ranger XP Kinetic Premium in Monticello.

Full specifications

Motor

Motor TypeInternal Permanent Magnet AC Motor
Motor Power110 HP
Motor Torque140 LB-FT

Battery

BatteryLithium Ion, 14.9 kWh Nominal

Drivetrain

Drive SystemHigh Performance On-Demand True AWD/2WD/VersaTrac Turf Mode | Engine Braking System (EBS): Regenerative Braking

Suspension

Front SuspensionDual A-Arm
Rear SuspensionDual A-Arm, IRS
Front Travel (in./cm.)10 in. (25.4 cm)

Brakes

Front braking system4-Wheel Hydraulic Disc with Dual-Bore Front Calipers
Rear braking system4-Wheel Hydraulic Disc with Dual-Bore Front Calipers

Wheels & Tires

Wheels14 in. (35.6 cm) Aluminum
Front Tire29 x 9-14; PRO ARMOR X-TERRAIN | 8 Ply Rated

Dimensions

Bed Box Dimensions (LxWxH)36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm)
Ground Clearance14 in (35.6 cm)
Overall Vehicle Size (LxWxH)120 x 62.5 x 78 in (305 x 158 x 198 cm)
Wheelbase81 in (206 cm)

Capacities

Box Capacity1,250 lb (567 kg)
Payload Capacity1,500 lbs (680.4 kg)
Seating Capacity3

Weights

Estimated Dry Weight (lbs./kgs.)1,754 lbs. (796 kg)
GVWR(49 State): 3600 lb. (1633 kg) | (50 State): 3600 lb. (1633 kg)

Features

FeaturesPremium Cut & Sew Seats with Contoured Seatbacks and Embroidered Polaris Branding, Premium Steering Wheel and Interior Accents, Polaris Pulse Electrical System (6 position), DC Outlets, Dual USB Port, Cargo Box Located 12V SAE Port with In-Dash On/Off Switch. *Connectivity with Ride Command + App
Cargo SystemLock & Ride
InstrumentationDriver's Side Dual-sweep Analog Dials w/ 4" Multi-Color LCD Rider Information Center: Power Use and Regen %, Battery State of Charge %, Range Remaining, Charging Rate, Battery Temperature, Motor Temperature, Accessory Voltage, Speedometer, Odometer, Tripmeter, Gear Indicator, Service Indicator and Codes, Programmable Service Intervals, Seat Belt Reminder, User Selectable Backlighting & Brightness, Clock
Hitch/TypeStandard 2 in (5 cm) Receiver
