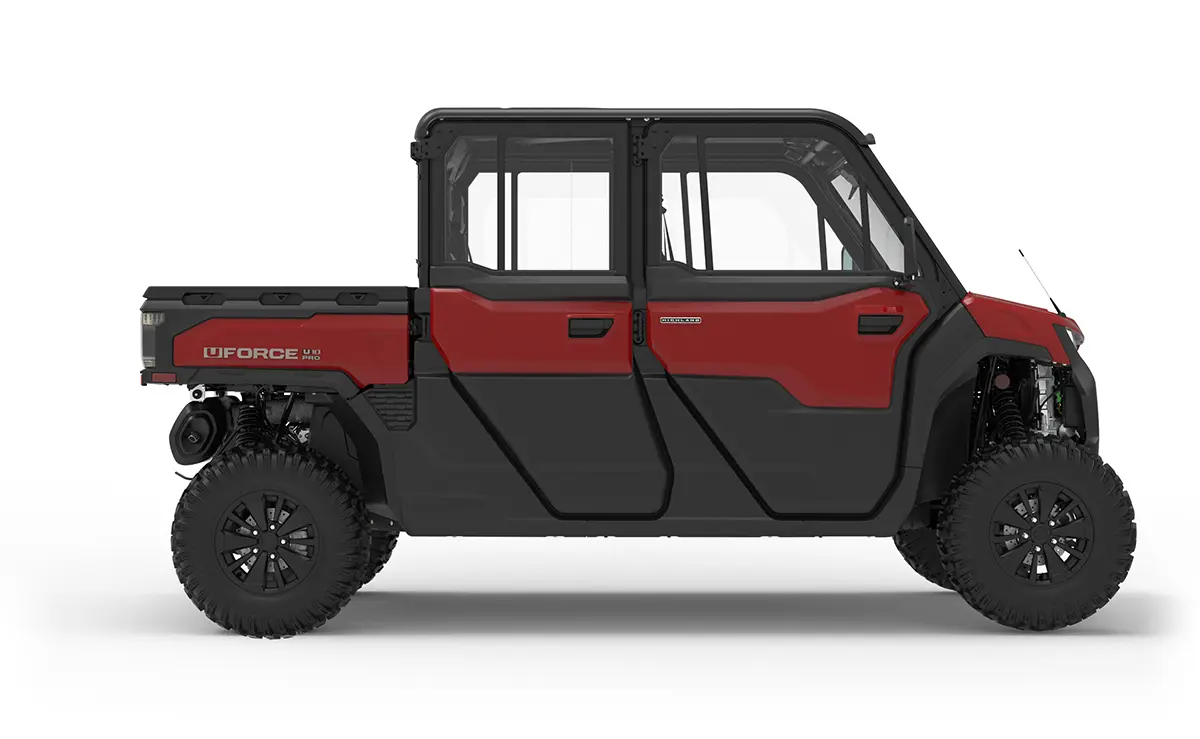

2026 UFORCE U10 XL Pro Highland
Six-seat hauler. 998cc power. Year-round comfort.
Starting at $27,499 MSRPTrueTimber® Kanati: $27,949 MSRP
What you get
The U10 XL Pro Highland seats six across two bench seats and carries 1000 lbs. in the bed. Its 998cc liquid-cooled three-cylinder engine delivers 88 hp and 69 lb-ft torque through an OmniDrive CVT with work and normal modes. Factory HVAC, power windows, and a tip-out windshield keep the cabin comfortable in any season. A 4500 lb. winch and 2500 lb. towing capacity handle the jobs. Moon Motorsports stocks the U10 XL Pro Highland at $27,499.
- 998 cc displacement
- 88 hp at 7250 rpm
- 69 lb-ft peak torque
- 2374 lbs. dry weight
Full specifications
ENGINE
ENGINE TYPE3 cylinder, 4-stroke, liquid-cooled, DOHC
DISPLACEMENT998cc
MAX POWER88 HP @ 7250 rpm
MAX TORQUE69 LB-FT @ 6500 rpm
FUEL SYSTEMBosch® EFI
COOLING SYSTEMLiquid cooled
DRIVE2WD/4WD/4WD lock
TRANSMISSIONOmniDrive™ CVT P/R/N/H/L
DIMENSIONS & WEIGHT
LENGTH X WIDTH X HEIGHT148” x 64” x 77”
WHEELBASE112.5”
DRY WEIGHT2374 lbs.
GROUND CLEARANCE13”
FUEL TANK CAPACITY11.8 gal.
CARGO CAPACITY1000 lbs.
TURNING RADIUS17.7’
CHASSIS
SUSPENSIONFront: High clearance A-arm independent / Rear: Double A-arm independent
WHEELS14” Cast Aluminum
TIRESFront: 29” x 9” x 14” CST / Rear: 29” x 11” x 14”
SHOCKSSpring preload adjustable, oil damped
BRAKES4-Wheel hydraulic disc with electronic parking brake
WHEEL TRAVELFront 11” / Rear 10.4”
STANDARD EQUIPMENT
HITCH/RECEIVER2”
TOWING CAPACITY2500 lbs.
WINCH4500 lbs.
ADDITIONAL FEATURESElectronic power steering, Bosch® EFI, electronic throttle with work/normal modes, OmniDrive™ CVT, 4500 lb. winch with synthetic rope, two 3-person bench seats, CFMOTO LED™ headlights/taillights with backup lights, tilt steering wheel, CFMOTO RideSync app compatible (T-Box), 12V outlet, USB port, push button shifting and starting, nfc key, 8” CFMOTO RideSync™ touchscreen display, electronic / hydraulic tilt bed, skid plate, front & rear sway bars, Hill Descent Control, locking front and rear differential, side rear view mirrors, roof with headliner, bus bar, 2” receiver, adjustable driver seat, audio package, power glass tip out windshield with wiper, sliding rear glass window, full locking doors with power glass windows, factory installed HVAC, 150amp charging system
COLORSNebula Black, Bordeaux Red, TrueTimber® Kanati
