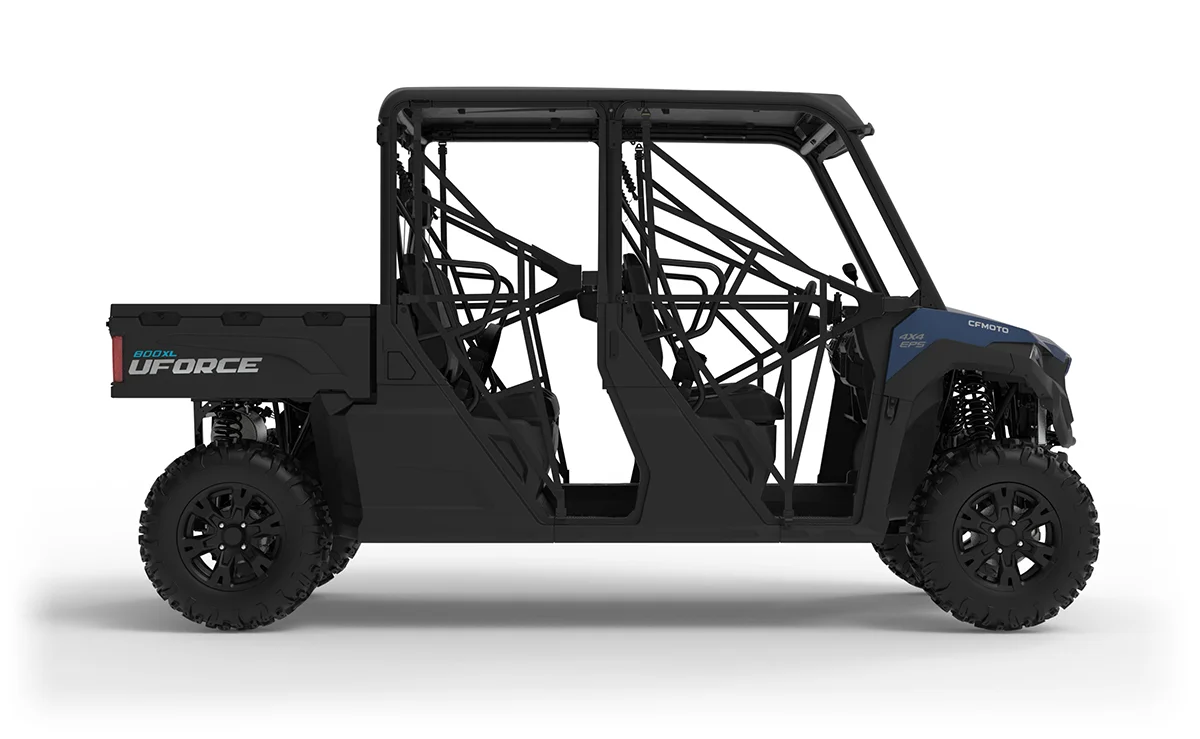

2026 UFORCE 800 XL
63 hp V-Twin. Four seats. 660-lb. box.
Starting at $13,499 MSRPTrueTimber® Kanati: $13,949 MSRP
What you get
The 800 XL runs a 63 hp V-Twin with 51 lb-ft torque, built to haul four riders plus a 660-lb. dump box. The OmniDrive CVT transmission handles work mode and normal mode. Bench seating across two rows means nobody rides in the truck bed. A 4,500-lb. winch, 1,500-lb. tow capacity, and 11.8 inches of ground clearance back up the engine. Moon Motorsports stocks the UForce 800 XL at $13,499.
- 800 cc displacement
- 63 hp at 7000 rpm
- 51 lb-ft peak torque
- 1629 lbs. dry weight
Full specifications
ENGINE
ENGINE TYPEV-Twin, liquid cooled, 4-stroke, SOHC, 8-valve
DISPLACEMENT800cc
MAX POWER63 HP @ 7000 rpm
MAX TORQUE51 LB-FT @ 5500rpm
FUEL SYSTEMBosch® EFI
COOLING SYSTEMLiquid cooled
DRIVE2WD/4WD/4WD lock
TRANSMISSIONOmniDrive™ CVT P/R/N/H/L
DIMENSIONS & WEIGHT
LENGTH X WIDTH X HEIGHT143” x 60” x 79”
WHEELBASE109.1”
DRY WEIGHT1629 lbs.
GROUND CLEARANCE11.8”
FUEL TANK CAPACITY10.5 gal.
CARGO CAPACITY660 lbs.
TURNING RADIUS18'
CHASSIS
SUSPENSIONFront: High clearance A-arm independent / Rear: Double A-arm independent
WHEELS14” Cast Aluminum
TIRESFront: 27” x 9” x 14”, Rear: 27” x 11” x 14”
SHOCKSSpring preload adjustable, oil damped
BRAKES4-wheel hydraulic disc with parking brake
WHEEL TRAVELFront 8.9” / Rear 8.9”
STANDARD EQUIPMENT
HITCH/RECEIVER2”
TOWING CAPACITY1500 lbs.
WINCH4500 lbs. w/ nylon rope
ADDITIONAL FEATURESElectronic power steering, Bosch® electronic throttle with work/normal modes, 4500 lb. winch with synthetic rope , two 2-person bench seat, 5” LCD display, CFMOTO RideSync app compatible (T-Box), 12V outlet, USB port, side nets, LED headlights/taillights with backup lights, tilt steering, roof, side mirrors, skid plate, rear sway bar, locking rear differential, large 10.5 gal. fuel tank, 2” receiver, adjustable driver’s seat, under-seat storage area, front bumper
COLORSDesert Tan, TrueTimber® Kanati, Twilight Blue
