Can-Am · Sport Side-by-Side · 2026

2026 Can-Am Defender MAX X mr HD11 with half-doors

999cc HD11. Four-mode traction. Half-doors.

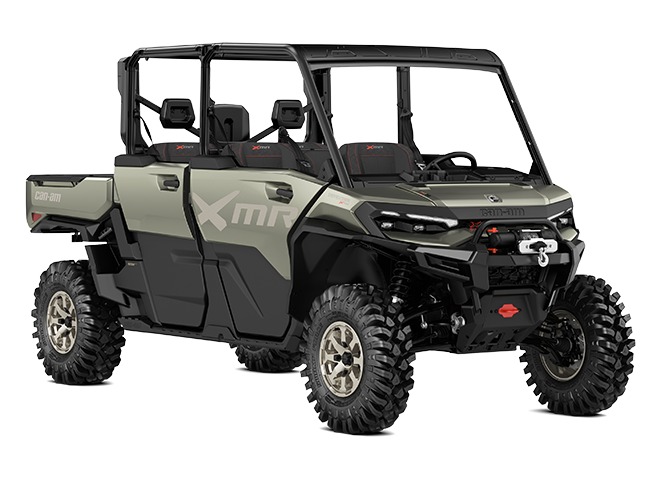

2026 Can-Am Defender MAX X mr HD11 with half-doors sport side-by-side from Can-Am, right-side studio view

What you get

The 999cc HD11 engine pairs with four true traction modes: 2WD, 4WD with front diff lock, 4WD MUD, and 4WD TRAIL. Half-doors and steel rock sliders protect you on job sites. A 4,500 lb winch with autostop, full skid plate, and 15 inches of ground clearance handle rough terrain. Front and rear disc brakes with twin-piston calipers stop hard. Moon Motorsports stocks the 2026 Defender MAX X mr HD11 in Monticello.

Full specifications

ENGINE

EngineHD11
Engine displacement999

DIMENSIONS & CAPACITIES

L x W x H164.2 x 65 x 79.8 in. (417 x 165 x 203 cm)
Ground Clearance15 in. (38.1 cm)
Gauge4.5 in. wide digital display
WinchRelocated 4,500 lb (2,041 kg) winch with synthetic cable and autostop
ProtectionFull heavy-duty HMW plastic skid plate, Large heavy-duty front bumper, Steel rock sliders, Wide mudguards, Half doors, Front anchor
Type of gauge4.5 in. wide digital display

SUSPENSION & BRAKES

FrontDual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm)
RearDual 236 mm disc brakes with hydraulic twin-piston calipers (28 mm)
BrakesStandard
Front SuspensionArched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
Front ShocksTwin tube gas charged shocks
Rear SuspensionArched Double A-Arm / 12 in. (30.5 cm) suspension travel
Rear ShocksTwin tube gas charged shocks

DRIVETRAIN

TransmissionpDrive primary and Quick Response System X (QRS-X) CVT with high airflow, Strategically positioned CVT air intakes and exhaust. Lower gearing ratio and Electronic Drive Belt Protection Extra-L / H / N / R / P
Drive TrainTurf Mode and lockable front differential with exclusive Smart-Lok * technology. True 4 modes traction system: 2WD / 4WD with front diff. lock / 4WD MUD / 4WD TRAIL
Driving AssistanceCVT Engine Braking Sport / Normal / Work modes Speed Limiter
Front TiresXPS Swamp King 30 x 9/11 x 14 in.
Rear TiresXPS Swamp King 30 x 9/11 x 14 in.
